Figma: How to Update Your Figma Files and Design Items in Zeroheight

Chi
Chi
  • Updated

There are two ways to update your designs in Zeroheight: updating existing designs that are already in use in your styleguide or syncing all design items from your Figma files.

Update Existing Designs in Your Styleguide

If you only want to update the designs that have already been used in your styleguide, follow these steps:

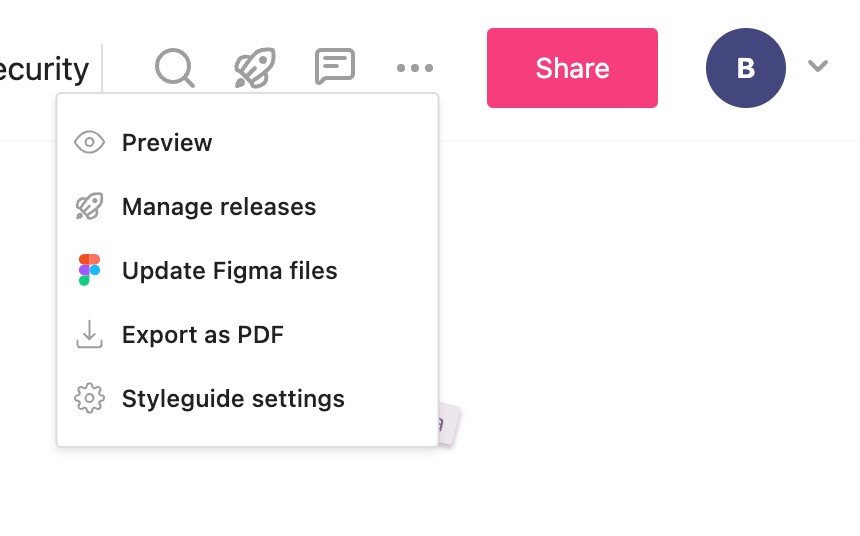

1) Select the …

2) Select Update Figma Filesthree dots menu in zeroheight

This option will sync only the designs that have already been used in your styleguide. New items that you haven't used in the styleguide won’t be synced with this update. If you want to sync all Figma files and design items, see the options below.

Update individual Figma files

To update a specific Figma file, you have two options:

Option 1: From the Styleguide

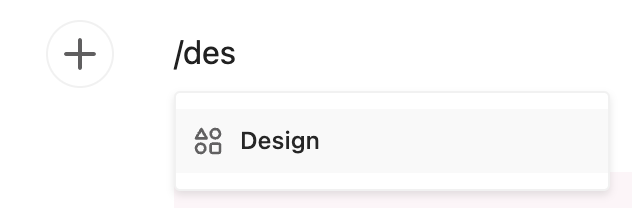

1) In your styleguide, select Design from the toolbar

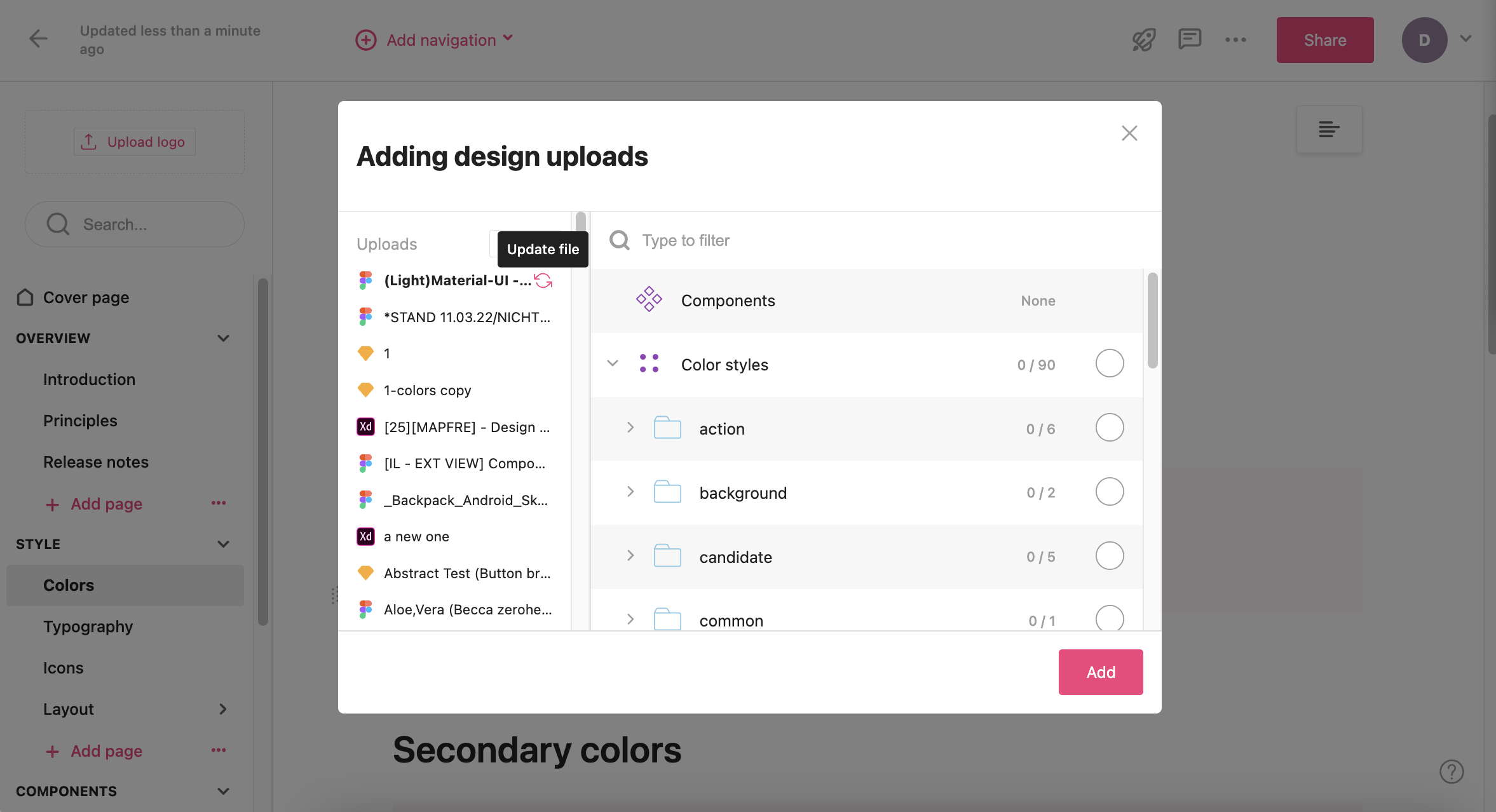

2) Next to your design file, select Update fileUpdate file function hovered over in the design uploads window.

Option 2: From the Resources Page

1) Go to Resources

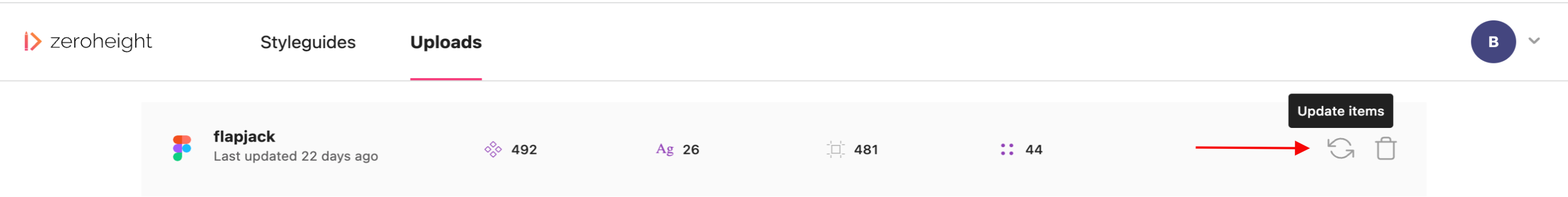

2) In the right-hand corner of the Figma file you want to update, select Update Items

Update items function hovered over uploaded Figma file.

FAQs

Does the zeroheight/Figma integration sync all Figma layers?

Yes.

If I delete a design file from Resourecs, is the content removed from my styleguide?

The content will still be in the styleguide, but it will be considered "orphaned" and cannot be updated.

If I re-add a file that was previously deleted, and then I continue to update and sync in zeroheight, will it update the previously synced content?

No, if you re-add your design file, it will import new content altogether. Any content previously in your styleguide will not be updated and need to be readded.
