You can create a beautiful design system site in zeroheight using your Zeplin components and styles with our Zeplin integration ✨

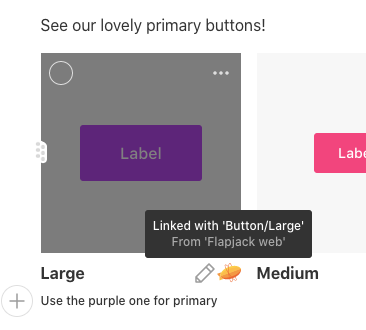

Zeplin component in zeroheight

Getting started

Here’s how to get started with zeroheight and Zeplin. If you need any additional help, get in touch at support@zeroheight.com 1) Sign up for a zeroheight account 2) Go to Uploads then click Add new upload
Arrow pointing to Uploads section and arrow pointing to Add new upload button
3) Click Upload next to Zeplin

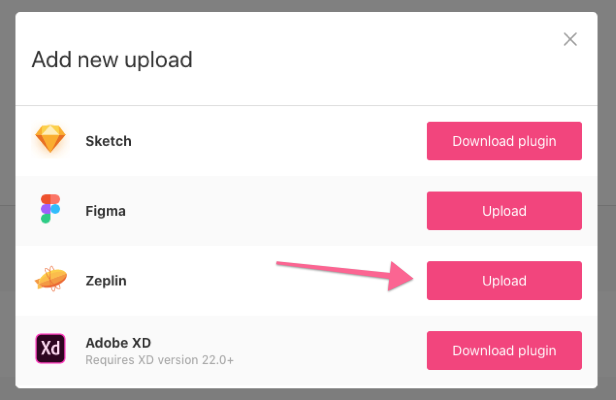

Arrow pointing to Upload button for Zeplin in design uploads window
4) Click Authorize to connect to Zeplin

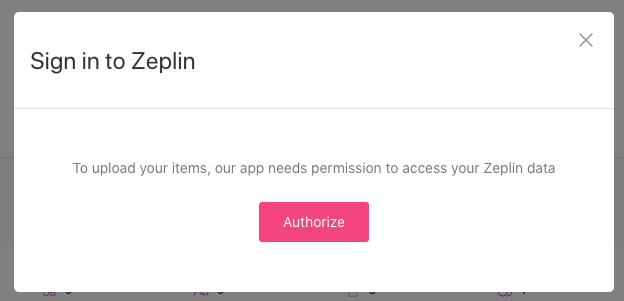

Pop up window to sign into Zeplin

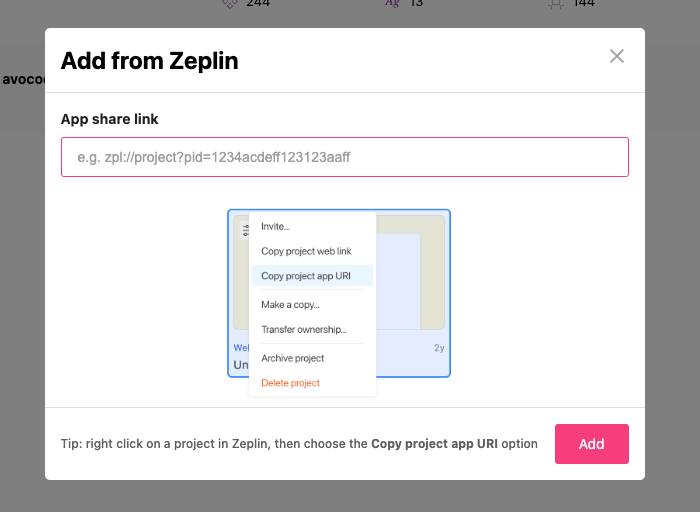

5) Sign in to Zeplin ( 👉 Note: You may already be signed in) 6) Click Allow to grant zeroheight access 7) Add your App share link and click Add Tip: To find your App share link, right-click on a project tile in Zeplin and copy the project app URI. Add to Zeplin screen grab. Showing how to add a Zeplin project URI into zeroheight.
8) Wait for your upload to complete

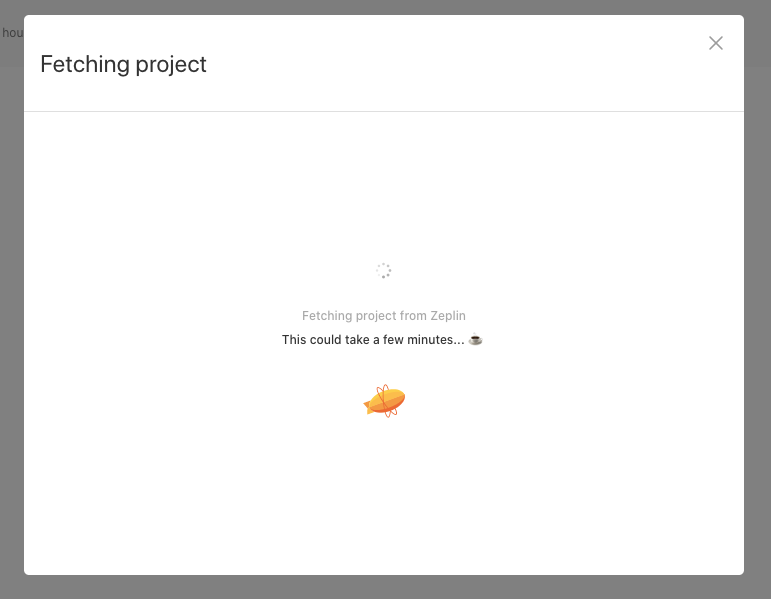

Loading window for Zeplin
9) Create a styleguide If you haven’t created a styleguide yet… time to create one!

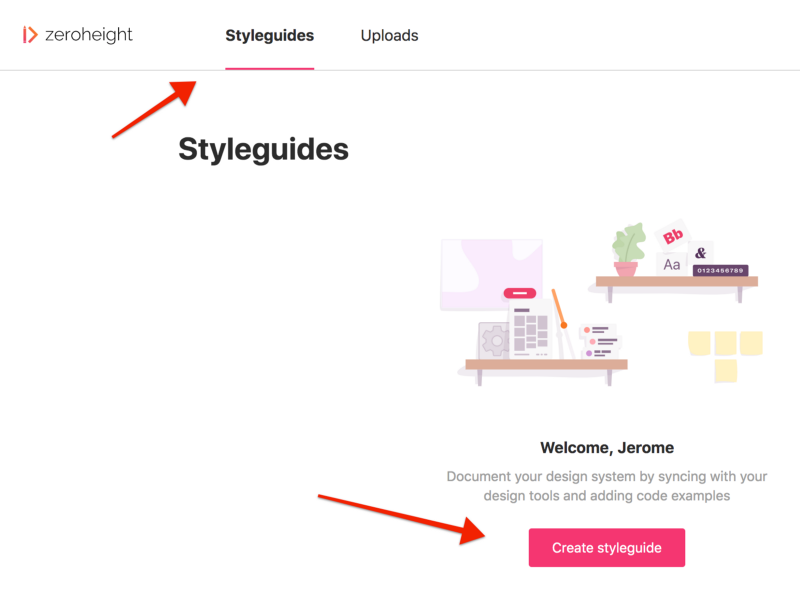

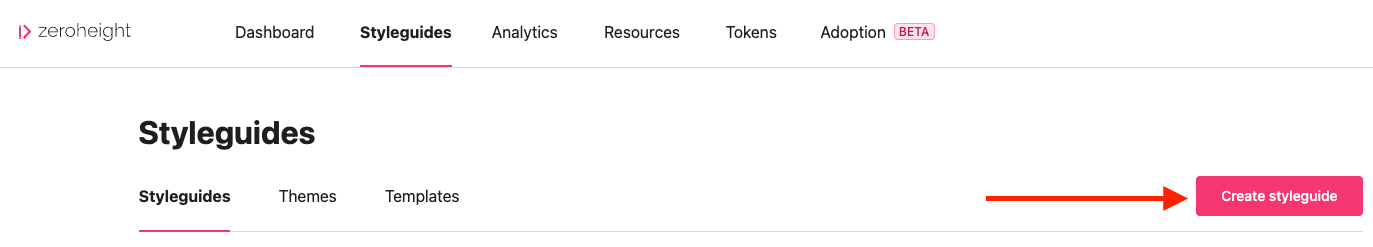

Arrow pointing to Styleguides section and arrow pointing to Create Styleguide button.

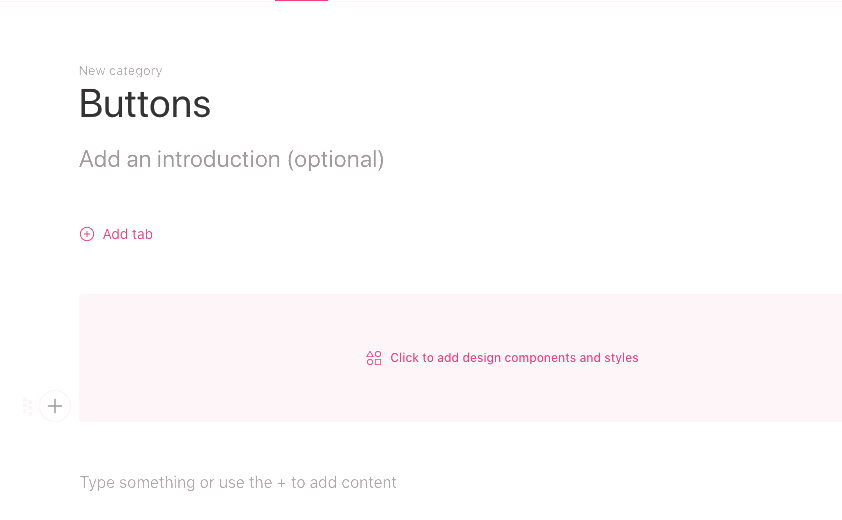

10) Insert Zeplin uploads in your styleguide Once you’re in a zeroheight styleguide, you can insert Zeplin uploads and start writing some documentation ✍️
Gif showing how to add Zeplin components into zeroheight.
